Dynatek's high-performance digital ignition

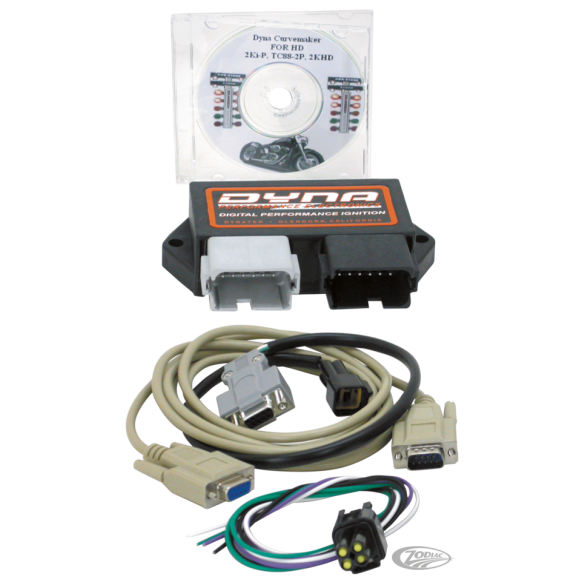

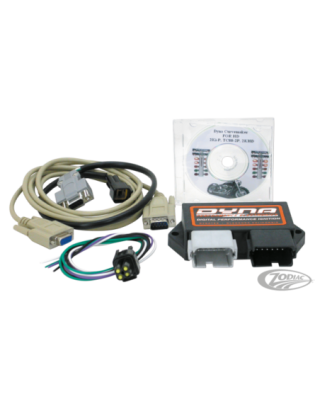

Dynatek's digital system for carbureted Twin Cam models features the latest digital electronic innovations. This is a fully programmable single-fire performance ignition that replaces the OEM system and gives you the ability to adjust the ignition based on the type of engine you are using as well as how you ride your motorcycle. • All functions with full digital precision • Compatible with stock ignition coils as well as low resistance racing and performance coils (3 Ohm to 0.7 Ohm) • Coil current constantly monitored for provide constant full spark energy • Uses original trigger sensors • Battery reverse and spike protection is built in • 1 year warranty • 6 programmable advance curves, divided into 3 groups for best performance of lightly modified stock engines, heavily modified engines, incredibly modified engines Setting the rev limiters at €8, from 5750 rpm to 7250 rpm in steps of 250 rpm The kit programming (ZPN730602) provides access to: • Fully definable 8-point wide-open throttle curve • Fully definable 8-point partial throttle curve •Programmable rev limiter in 50 rpm steps •Programmable 0 to 5 dead cranking revolutions for easier starting •Rear cylinder offset -10 to +10 degrees •Safety lockout •Single or double shot • ¢Total hours of the engine • Running time at full throttle • Longest running time at full throttle • Maximum RPM • Seconds near rev limit • Number of engine starts Will not work with models equipped with fuel injection.
